800 Watt Solar Kit

The 800 Watt Solar Kit is our largest 12V kit, containing 4 high-efficiency 200W Monocrystalline panels with 9 busbars and a 60A MPPT controller. This kit can be paired with 4 of our 100AH 12V Lithium batteries and is capable of powering off-grid RV solar systems, small RVs, and tiny homes. For a quieter, more peaceful outdoor experience, go solar now and start powering your RV solar setup, boat, or trailer!

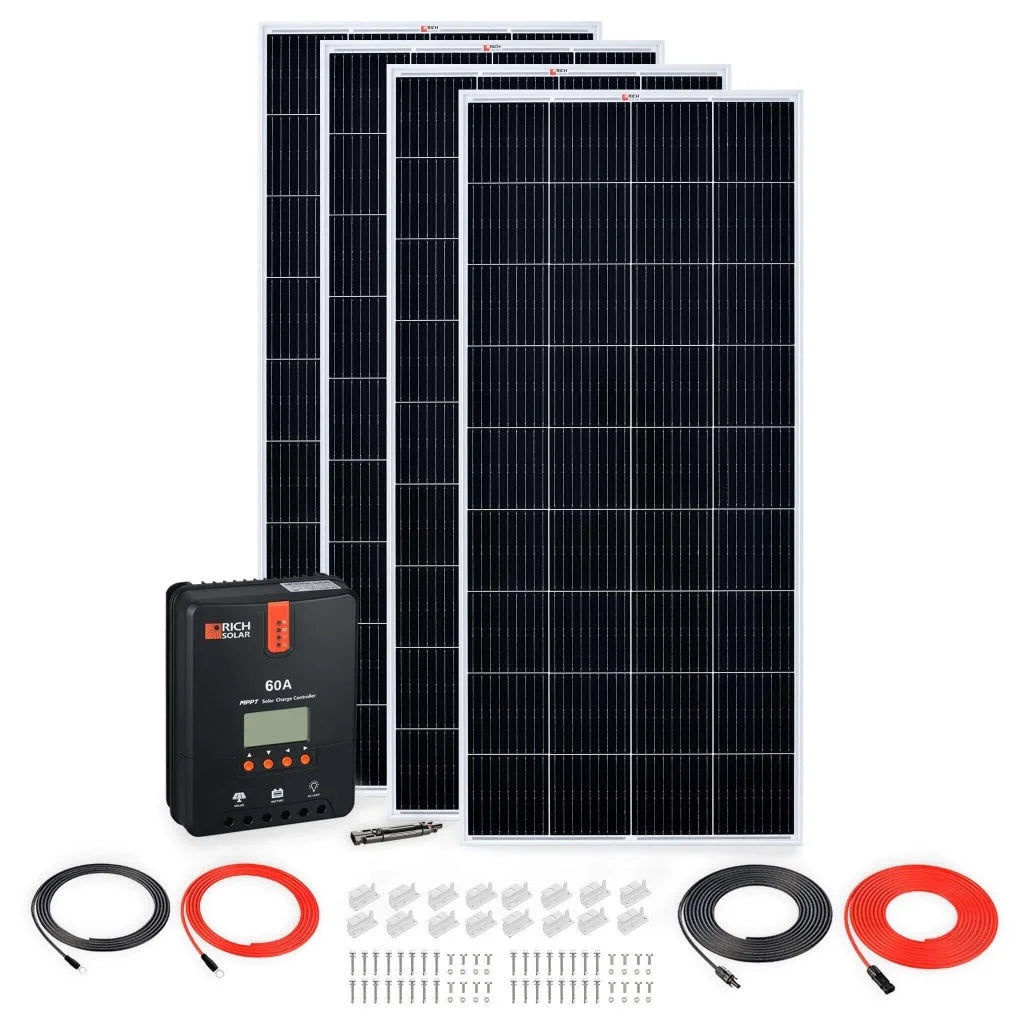

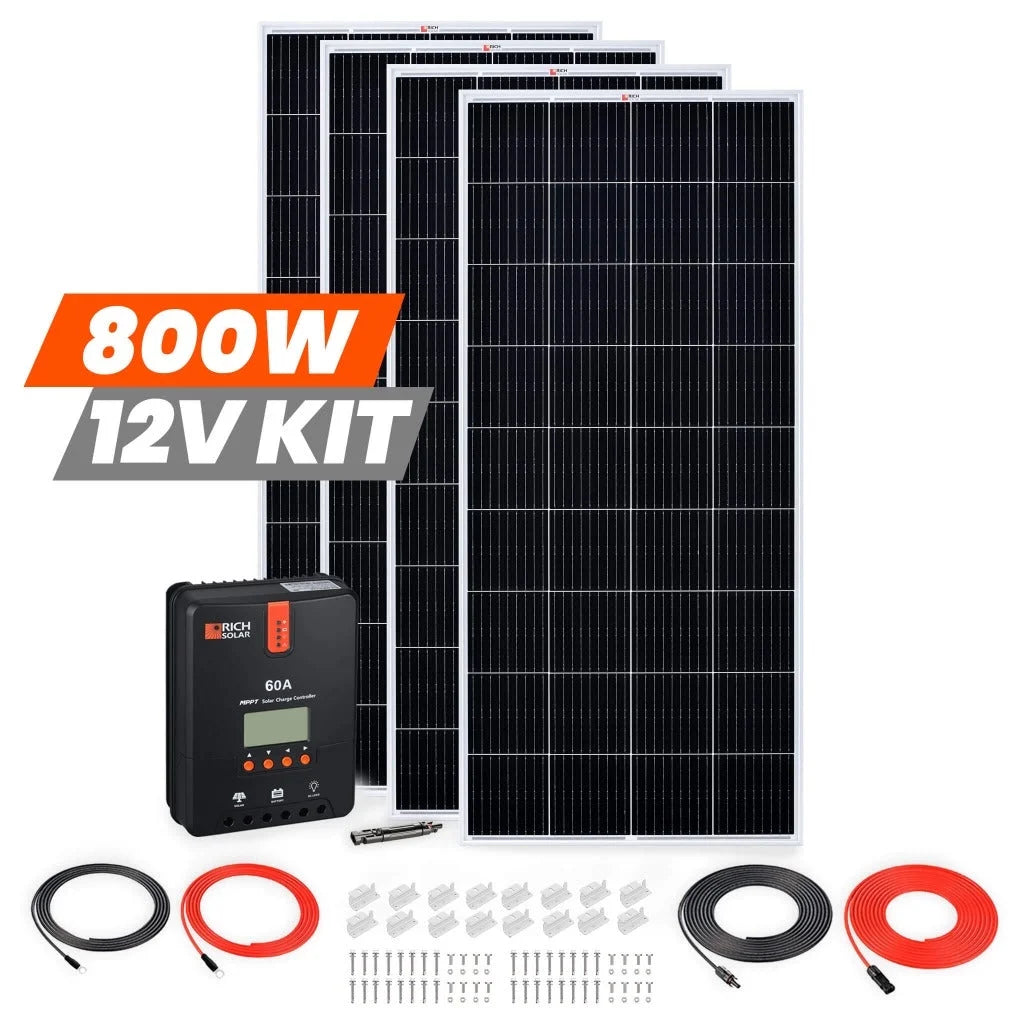

Package Contents

• Solar Panels: 4 x 200 Watt Monocrystalline Solar Panel

• Charge Controller: 1 x 60A MPPT Solar Charge Controller

• Solar Cable (Red): 1 x 20' #10 Gauge Solar Cable (Red) – connects solar panel to controller

• Solar Cable (Black): 1 x 20' #10 Gauge Solar Cable (Black) – connects solar panel to controller

• Battery Cable (Red): 1 x 10' #4 Gauge Battery Cable (Red) – connects controller to battery

• Battery Cable (Black): 1 x 10' #4 Gauge Battery Cable (Black) – connects controller to battery

• Mounting Brackets: 4 x Mounting Z Brackets (one set of 4)

• Fuse Holder: 1 x 15A Inline Fuse Holder with Fuse

Specifications

• Maximum Power (Pmax): 200W per panel (800W total)

• Max Power Voltage (Vmp): 20.4V

• Max Power Current (Imp): 9.80A

• Open Circuit Voltage (Voc): 24.3V

• Short Circuit Current (Isc): 10.2A

• Weight: 26.5 lbs (per panel)

• Dimensions: 58.7 x 26.8 x 1.4 in (per panel)

• Panel Type: Monocrystalline Solar Panel

• Connection: MC4

• Material: Aluminum

• Electrical Current: DC

• Mount Type: Roof

• Color: Black

• Number of Solar Panels: 4

Features

• High Efficiency Solar Panels: Highest grade monocrystalline solar cells with anti-reflective coating to maximize light absorption and output

• Simple Installation: Pre-assembled wiring harness requires no crimping tools; all components are plug-and-play compatible for easy expansions and upgrades

• Digital MPPT Charge Controller: Provides real-time updates of volts, amps, and amp hours at a glance; protects system from overcharging

• Weather-Resistant: Panels are built to withstand outdoor conditions for permanent installation

• Versatile Applications: Ideal for off-grid RV solar systems, small RVs, tiny homes, boats, and trailers

Warranty

• Solar Panels: 25-year output warranty
